ECC Downloads

EX-70-ASI Installation Manual

This page contains the latest downloads for ECC products.

ECC Manager HRZ Software, V2.09 - Latest, supports DL-20, DL-20-ASI, DL-20-ASI-2, DL-20-ASI-3, DL-20-ASI-2-HRZ, DL-20-ASI-3-HRZ, DL-20-HRZ, DL-20-RFG-H, EX-31, EX-51, AD-11, AD-15
Posted: 11/05/2024 Size: 874M bytes

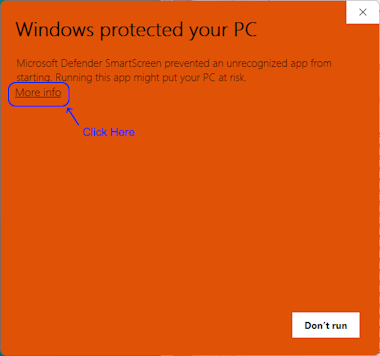

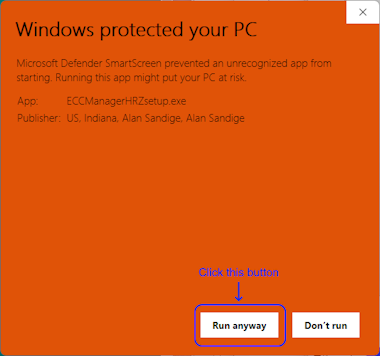

NOTE: Sometimes Windows Defender will give you a red/blue screen like below. When you click the More Info link, you will see the app has a valid certificate/Publisher and a Run Anyway button appears at the bottom. Click the Run Anyway button. Defender isn't very smart and gets paranoid when a "new" program starts appearing on the Internet. With enough downloads they will hopefully add it to their trusted list, but don't hold your breath. Once installed, the app will automatically take care of updates, so you shouldn't have any more issues on that PC.

ECC Manager HRZ Revision History

v2.09 Release Notes

  • Added graphics update override on version updates when no previous graphics updates have been required
  • Changed default on new DL-20 profiles to 4 ad spaces

v2.08 Release Notes

  • Added custom ad files to the profile zip, so everything can be sent via the ZIP profile in emails

v2.07 Release Notes

  • Added multiple AD imports for DL-20s at a single shot
  • Fixed issue when trying to Import AD for DL-20s, wouldn't allow BMP files

v2.06 Release Notes

  • Adjusted Hall PI programmer for 50 floors
  • Separated the Show PI flags under GPI setup
  • Added Show Open Door notification to the Hall PIs (text line @ top of screen)
  • Moves DEFAULT files to CUSTOM paths for managing writes/updates
  • Changed to copy the graphics to the Docs | CUSTOM folders
  • Changed graphic update management
  • Added a graphics reset option to the Help menu to reload all the graphics
  • Changed the custom graphics to fixed X graphics, X27-X64 with GPI programming support for the new X files

v2.05.001 Release Notes

  • Fixed issue that could erase profiles on updates above 1.xx

v2.04.001 Release Notes

  • Added BMP imports to custom AD imports
  • Added checkbox for DL-20 upgrades from versions below 4.xx to set up SD cards easier
  • DL-20 setups now refer to Controller/Extension
  • Fixed small issue with setting firmware version number

v2.03.001 Release Notes

  • Created sub-version system to allow PI updates without functional changes
  • Changed DL-20 Model Combo to show board/silk screen colors for models
  • Changed X08_Garage PI to show Garage
  • Removed DL-20-ASI-2-HRZ and DL-20-ASI-3-HRZ as physical limitations won't allow upgrades

v2.02 Release Notes

  • Added AD-15 programmer and manual
  • Changed GPI references to Hall PI
  • Changed Work Drive to SD/USB
  • Changed DL-20 Type selection box so it won't allow any profiles to be selected if they have a firmware version of 0

v2.01 Release Notes

  • Added Quick Import feature for old SD card profiles
  • Fixed spurious import errors

v2.00 Release Notes

  • Change to support FULL site profiles for HRZ support
  • Added automatic updating and firmware auto-downloading
  • Improved manual reader as separate screen

v1.03 Release Notes

  • Changed drive detection to dynamic selection instead of fixed drive letters
  • Added a Manual viewer button to each screen
  • Improved layout
  • Made model selection show the board color

v1.02 Release Notes

  • Fixed minor issues on updating firmware drawing incorrect version numbers

v1.01 Release Notes

  • Added import feature for DL-20 setup to import older ECC Manager profiles and upgrade graphics
  • Changed Car Service images for better clarity
  • Fixed issue in Param A from Straight to Car on ring up into Mute SP on Answer

v1.00 Release Notes

  • First release version supporting entire DL-20 line and GPI line w/new high resolution layouts
ECC Manager 2 Software, V4.12 - Supports DL-20-ASI-2, DL-20-ASI, DL-20, EX-51, & EX-31
Posted: 02/01/2024 Size: 199M bytes

ECC Manager 2 - 4.xx Revision History

v4.12 Release Notes

  • Changed AD import to allow PNG and BMP files
  • Changed manual viewer to standard form size
  • Fixed issue in Param A, Straight to Elevator is really Mute SP on Answer

v4.11 Release Notes

  • Fixed issue that would not let the program add PIs, only remove them

v4.10 Release Notes

  • Improved SD card formatting

v4.09 Release Notes

  • Added DL-20/EX-51 Tester/Cycler and ECC Banners
  • Changed system defaults of Min Digit Time of 1 and default to Alpha controllers
  • Fixed issue after writing to an SD card it wouldn't write any more and required a restart
  • Fixed issue of not showing the correct DL-20-ASI-2 firmware version on the DL-20 setup screen
  • Fixed screen sizes to 1024x768 for some smaller screen laptops

v4.08 Release Notes

  • Updated layout and added Forced Drive reset option
  • Fixed issue with drive selector not allowing new drives on change

v4.07 Release Notes

  • Improved drive selectors
  • Fixed issue with not recording location message correctly

v4.06 Release Notes

  • Changed the drive detection to ONLY use forced drive selection via windows drive combos w/no eject options
  • Removed program rebooting around SD card changes
  • Cleaned up DL-20 formatting of SD cards

v4.05 Release Notes

  • Added Touch Tone scaling option via E.C.C. Manager 2 setup

v4.04 Release Notes

  • Changed Seismic Icon to match older version
  • Increased the reboot delay to 5 sec to address an access violation issue on eject/reboot

v4.03 Release Notes

  • Changed PI import to use an update file ending in _DL20_2.ZIP
  • Fixed issue in PI import that didn't import PIs correctly
  • Fixed detection of USB sticks

v4.02 Release Notes

  • Fixed issue with new insertions overriding forced SD card drives
  • Fixed issue with freezing on Eject button clicks

v4.01 Release Notes

  • Fixed issue with selecting an SD card override so the user has to press the Select button

v4.00 Release Notes

  • First release version, works with DL-20-ASI-2, DL-20-ASI, DL-20, EX-51, and EX-31

ECC Manager Software, V3.22 - Supports DL-20-ASI, DL-20, EX-51, & EX-31
Posted: 12/21/2021 Size: 94.8M bytes

ECC Manager - 3.xx Revision History

v3.22 Release Notes

  • Fixed issue in DL-20 setup, after playing a PI, trying to reassign a PI will not copy the new audio file.

v3.21 Release Notes

  • Fixed logic issue on DL-20 setup to Load Default Info correctly

v3.20 Release Notes

  • Changed FS Ignore to ALL Icons Ignore in FS mode

v3.19 Release Notes

  • Fixed issue with EX-51 Fire Service ignore bit potentially not being set correctly

v3.18 Release Notes

  • Fixed issue with Hall PI Programmer, incompatibilities w/some serial cables
  • Fixed issue with Hall PI direction test not showing the blank direction

v3.17 Release Notes

  • Improved drive detection for slower SD cards

v3.16 Release Notes

  • Fixed issue where reading from an EX-51 card copied ROM files if they exist
  • Fixed windows issue of was copying the new System folder on EX-51 card reads

v3.15 Release Notes

  • Fixed issue with detection of drive after format and before writing the SD card
  • Added support to EX-51 to ignore Fire Service messages via a Setup option bit
  • Updated several manuals

v3.14 Release Notes

  • Fixed issue with SD card detect
  • Adjusted DL-20 manual protocol for v2.20 firmware issue

v3.13 Release Notes

  • Fixed a bug in copying the Firmware to a USB stick
  • .....NOTE: After installing, make sure you download the current Firmware

v3.12 Release Notes

  • Added diagnostic feature to show files transferred in DL-20 setup
  • Fixed data error in DL-20 manual

v3.11 Release Notes

  • Minor change in WAV init routine
  • Several changes to the PI and AD exports on the DL-20 setup screen
  • Made the firmware data visible on the DL-20 setup screen
  • Fixed bug in Set to other Number on the EX-51 setup screen
  • Fixed connection to the Manuals on the main screen and added the ECC Manager Manual

v3.10 Release Notes

  • Fixed issue with importing custom EX-51 PI's not loading the graphics

v3.09 Release Notes

  • Fixed issue with importing custom PI's not loading the graphics correctly

v3.08a Release Notes

  • No program changes, just changed installer to register the FTP access

v3.08 Release Notes

  • Adjusted screen sizes to fit a 1024 x 768 display size
  • Fixed some labels that didn't show on Windows 7
  • Fixed issue of not copying custom PI audio files and custom location message

v3.07 Release Notes

  • Fixed issue with not writing VIDEO.ADS folder to SD and update file renaming

v3.06 Release Notes

  • Added SD card forced override to use a specific reader drive and improved SD card detection

v3.05 Release Notes

  • Fixed bug in setting load test due date

v3.04 Release Notes

  • Fixed issues with files not being copied

v3.03 Release Notes

  • Fixed issue of some files/folders not being installed correctly

v3.02 Release Notes

  • Moved data files to Documents folder
  • Fixed issue of some files not being copied to/from media

v3.01 Release Notes

  • Added PI Blanking to DL-20 setup

v3.00 Release Notes

  • Reworked, added remappable FTP, EX-51 PI Blanking, enhanced file copy
